FJ40 Digital Dashboard and Gauges
FJ40 Digital Dashboard and Gauges
FJ40 Digital Dashboard and Gauges
FJ40 Digital Dashboard and Gauges
FJ40 Digital Dashboard and Gauges

FJ40 Digital Dashboard and Gauges

Regular price $699.99 $0.00 Unit price per

The N-Que FJ40 Digital Dashboard is the first of its kind in the Land Cruiser FJ40 community.  Made in collaboration with Kaizer Cruiser, the cluster is a snap-in replacement for the OEM FJ40 cluster and communicates seamlessly with all the analog sensors in the FJ40 regardless of engine or transmission swap.  The custom bezel for is available in three flavors:

ABS Plastic

Stainless Steel

Aluminum

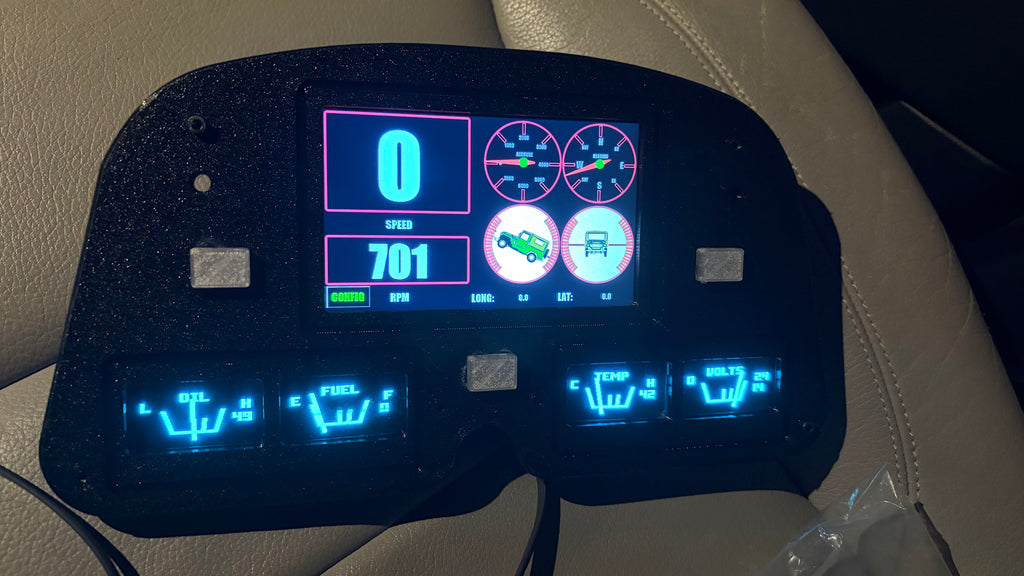

The digital dashboard features a central 5” capacitive touchscreen with three different display modes:

Analog:



FJ40 Digital Dash Analog Mode

Digital:



FJ40 Digital Dash Digital Mode

Raw:



FJ40 Digital Dash Raw Mode



In addition to this there are four dedicated screen for Oil, Water, Fuel and Battery gauges just like the OEM FJ 40 cluster.





The dashboard is accompanied by an analog to digital sending unit that converts and transmits the following sensor data:



Speed – The unit connects to the transfer case via a supplied Toyota Hilux VSS Sensor (Model 83181-20040).  Sensors for non-Toyota transmission can be supplied as required.

RPM – The sender unit connects to your bellhousing via a magnetic universal pickup sensor included in your purchase.



Fuel -  All OEM and aftermarket resistance to ground sensors.  Calibration is required depending on your sensor resistance range.

Water Temperature – All OEM and aftermarket resistance to ground sensors.  Minimal calibration required.

Oil Pressure – OEM and aftermarket sensors supported.

GPS – The included GPS provides compass heading, speed, navigation position and temperature data.

OBD2 – Included in the FJ Digital dashboard is an OBD2 module and DB9 to OBD2 cable to connect most modern engines and pickup Speed, RPM, Engine Temperature and Odometer through a single connection.

Supported Toggle Sensors:

  • Left / Right Turn Signals
  • Hi-Beams
  • Brake Light
  • 4X4 indicator (Where supported)
  • Optional User Defined on/off sensor.

 If you currently own a FJ40 Digital Cluster you can find the manual here.
